China Manufacturer Steam Superheater and Reheater for Boiler or Furnace Parts waste to energy

Reheater for Boiler or Furnace Introduction

1. Power station furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes.

2. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.

Reheater Function

1. Therefore the number of reheat stages can not be many as the pressure drop will reduce efficiency of thermal cycle.The steam pipes and reheater coils are to be so designed to limit the drop to 2–3%.

2. The control valves in reheat steam path is not desirable.Systems using HP LP bypass require these valves to control steam flow during bypass operation.

3. The efficiency of the Reheat cycle can be improved by increasing the pressure and temperature of steam entering into the turbine. As the initial pressure increases the expansion ratio of the turbine also increases and the steam becomes quite wet at the end of expansion.

Main Advantage

The main advantage of reheat cycle is to reduce the specific consumption and consequently reduce the size of the boiler and other auxilaries for the same power.The reheat cycle is preffered for the high capacity above 100 MW plant.

Differences

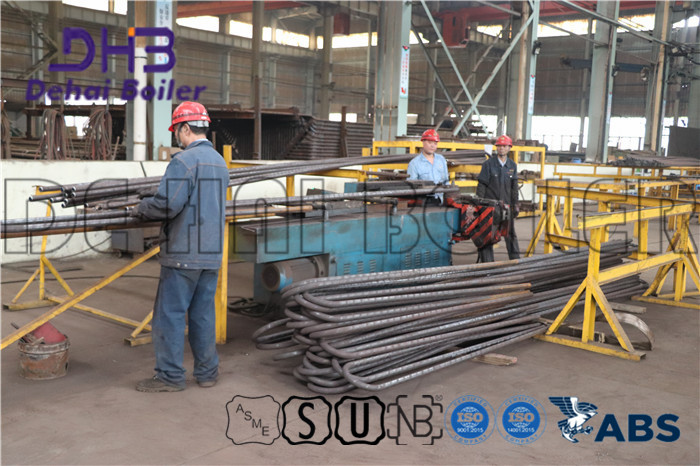

Bending

Measuring

Squeezing

    Dehai Boiler is a manufacturer of A-class boiler(Power station boiler,industrial boiler,HRSG,waste-to-energy boiler,biomass boiler) and correlated A-class pressure parts intergrating the design,fabrication,installation,repair and mainteance.

Dehai has ISO9001:2008 certificate issued by France AFAQ-EAQA Ltd,A-class boiler manufacturing license,ASME S Stamp and U Stamp authorized certificate.

    Through effective management system and high quality products,Dehai became the qualified supplier of many famous boiler factories and energy companies and has won a lot of stable customers both domestic and abroad ,such as :Amec Foster Wheeler,Alstom,Dongfang Boiler,Harbin Boiler,Hangzhou Boiler,etc.

    Based on the business idea of "High quality for survival and perfect service for development",we shall care for customers' demand and keep improving our work permanently. To create Dehai brand,is to serve clients with our improved products and better performance.

    Dehai is located in Economic and Technological Development Zone,Zhangjiagang City,Jiangsu Province. S38 highway Zhangjiagang exit is about 1.5 kilometers to the north of our company and the traffic is very convenient.
